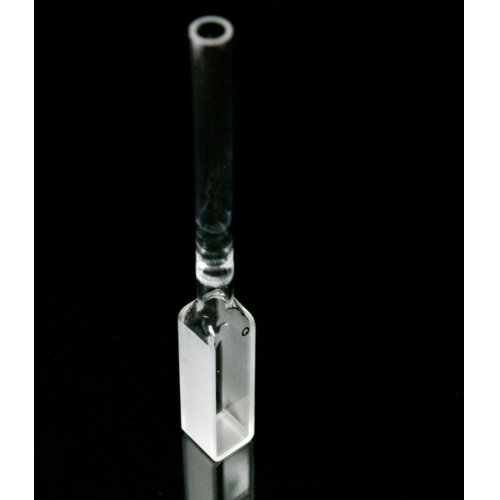

Quartz Cuvette with Quartz to Pyrex Graded Seal Tube, 10mm, Cell

Quartz Cuvette with Quartz to Pyrex Graded Seal Tube (Light Path=10mm)

Quartz to Pyrex graded seals tube can be joined to other borosilicate(Pyrex) apparatus.

The dimensions of the graded seals tube used are OD 7.8mm,ID 5.6mm, wall thickness 1.1mm and tube length 75mm.

The length of quartz cuvette part = 45mm.

Full Length = 120mm.

The cuvette has a fused quartz body and 2 transparent windows. It fits all standard VIS-NIR spectrophotometers (such as Shimadzu, Perkin Elmer, GE, HP, and Beckman etc.) and is designed for UV-VIS-NIR absorption applications.

Parameters:


Cell Material

Optical Quartz


Top Type

Quartz to Pyrex Graded Seal


Light Path

10 mm


Cell Volume

3.5 mL


Outside Dimensions

120mm × 12.5mm × 12.5mm


Spectral range

190-2000 nm
