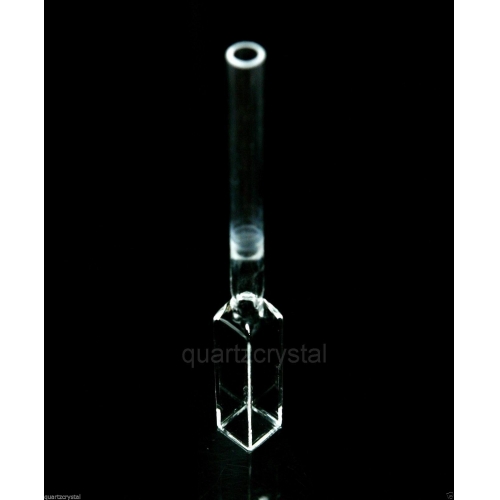

Fluorescence Quartz Cuvette with Quartz to Pyrex Graded Seal Tube (Light Path=10mm, 5 clear windows)
Quartz to Pyrex graded seals tube can be joined to other borosilicate(Pyrex) apparatus.
The dimensions of the graded seals tube used are OD 7.8mm,ID 5.6mm, wall thickness 1.1mm and tube length 75mm.
The Height of quartz cuvette part = 45mm.
Full Height = 120mm.
The cuvette has a fused quartz body and 5 transparent windows. It fits all standard UV-VIS fluorescence spectrophotometers (such as Shimadzu, Perkin Elmer, GE, HP, and Beckman etc.) and is designed for UV-VIS-NIR fluorescence applications.
Parameters:
Cell Material | Optical Quartz |
Top Type | Quartz to Pyrex Graded Seal Tube |
Light Path | 10 mm |
Cell Volume | 3.5 mL |
Outside Dimensions | 120mm × 12.5mm × 12.5mm |
Spectral range | 190-2000 nm |
This product was added to our catalog on Wednesday 17 September, 2014.
